Adding a custom filter

You can extend Botkube functionality by writing additional filters. The FilterEngine runs these filters on the Event struct before forwarding it as a notification to a channel. These filters can check resource specs, validate some checks and add messages to the Event struct.

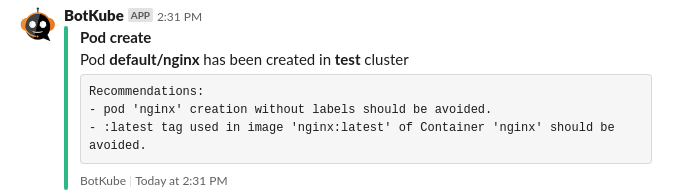

We have already defined a filter to add suggestions in the notifications if container image in pod specs is using latest tag.

tag_filter

Let's see, how we can write a filter like this.

A. Writing a filter​

Prerequisites:

1. Create a new .go file​

Create a new file (e.g image_tag_checker.go) in botkube/pkg/filterengine/filters/ directory

Set package name as "filters" and import required packages:

package filters

import (
    "strings"

    "github.com/sirupsen/logrus"
    apiV1 "k8s.io/api/core/v1"

    "github.com/kubeshop/botkube/pkg/events"
)

2. Create a structure and implement "Run() and Describe()" methods for the struct.​

FilterEngine has an interface Filter defined for the filters:

type Filter interface {
    Run(context.Context, *events.Event)
    Name() string
    Describe() string
}

Create a struct which implements the Filter interface. Use logger instance taken as an argument from the constructor:

// NamespaceChecker ignore events from disallowed namespaces.
type NamespaceChecker struct {
    log logrus.FieldLogger
}

// NewNamespaceChecker creates a new NamespaceChecker instance
func NewNamespaceChecker(log logrus.FieldLogger) *ImageTagChecker {
    return &NamespaceChecker{log: log}
}

// Run filer and modifies event struct
func (f *NamespaceChecker) Run(ctx context.Context, event *events.Event) {

    // your logic goes here

}

// Name returns the filter's name
func (f *NamespaceChecker) Name() string {
    return "NamespaceChecker"
}

// Describe describes the filter
func (f *ImageTagChecker) Describe() string {
    return "Checks if event belongs to blocklisted namespaces and filter them."
}

3. Add your logic in the Run() function​

Now, put your logic in the Run() function to parse resource object, run validation and modify Event struct. The fields in the Event struct can be found here.

// Run filters and modifies event struct
func (f *NamespaceChecker) Run(_ context.Context, event *events.Event) error {
    // Skip filter for cluster scoped resource
    if len(event.Namespace) == 0 {
        return nil
    }

    for _, resource := range f.configuredResources {
        if event.Resource != resource.Name {
            continue
        }
        shouldSkipEvent := !resource.Namespaces.IsAllowed(event.Namespace)
        event.Skip = shouldSkipEvent
        break
    }
    f.log.Debug("Ignore Namespaces filter successful!")
    return nil
}

4. Register your filter in the Filter Engine​

Open pkg/filterengine/with_all_filters.go file and call the constructor of your new filter in the WithAllFilters method:

// WithAllFilters returns new DefaultFilterEngine instance with all filters registered.
func WithAllFilters(logger *logrus.Logger, dynamicCli dynamic.Interface, mapper meta.RESTMapper, conf *config.Config) *DefaultFilterEngine {
    filterEngine := New(logger.WithField(componentLogFieldKey, "Filter Engine"))
    filterEngine.Register([]Filter{
        filters.NewNodeEventsChecker(logger.WithField(filterLogFieldKey, "Node Events Checker")),
        // ...

        // Your filter goes here:
        filters.NewNamespaceChecker(logger.WithField(filterLogFieldKey, "Namespace Checker"), res), // make sure to use `logger.WithField`
    }...)

    return filterEngine
}

B. Rebuild and deploy the Botkube backend​

  • Build the Botkube backend docker image with make container-image.
  • Push the image to Dockerhub registry.
  • Install/Upgrade your Botkube deployment (Steps are provided here).

The implementation of built-in filters can be found at: https://github.com/kubeshop/botkube/tree/main/pkg/filterengine/filters
